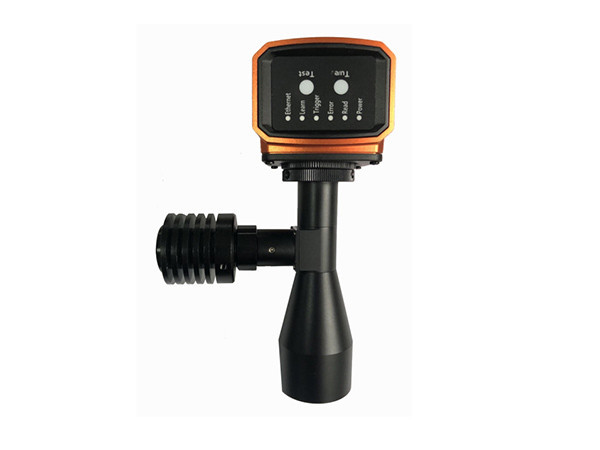

1 million pixel image fixed code reader;

● LCD industry vericode reading;

Small size, easy installation, and easy to use;

●Configure point or coaxial light sources for LCD code reading scenarios;

Equipped with OK/NG signal indicator light, it can provide intuitive feedback on whether the code reading is successful;

Support multiple communication protocols such as Ethernet, RS-232, USB-virtual COM, USB-HID, etc;

● Support FTP image transmission for easy traceability and analysis;

All metal casing, with a protection level of IP65.

▶ Performance parameters:

parameter	ICW75V
Size (mm)	eighty × fifty × 129 (Width × Height × Depth
weight	238g
Power supply method	5-30VDC ± 10%, 500mA
system architecture	Linux
Sensor type	Global Shutter CMOS
Frame rate	60FPS
pixel	1280 pixels (H) × 800 pixels (V)
Reading distance	60mm
power dissipation	Peak<5W, Average 3W
Interface support	RS-232, RS-485, USB virtual COM, USB keyboard, Ethernet, Modbus
External input	Two photoelectric isolation inputs, capable of connecting to NPN, PNP, and relays
External output	Three photoelectric isolation outputs
Supports one-dimensional barcode 1-D	Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Post, UPC, EAN, etc
Supports 2D barcode 2D	VericodePDF 417, MicroPDF 417, DataMatrix, Maxicode, QR code, MicroQR, Aztec, Hanxin, etc
working temperature	0 ℃ to 50 ℃
Storage temperature	-40 ℃ to 70 ℃
humidity	0% to 90% relative humidity (non condensing)
Recognition accuracy	Min. 2mil
Safety level	Light safety: EAN62471:2008
EMC electromagnetic interference	EMC Electromagnetic compatibility: EN55032
Protection level	IP65
ESD electrostatic protection level	EN55024, contact discharge: 8kV, coupling discharge: 15kV
RF anti-interference	IEC61000-4-3, 10V/m
Artificial light immunity	100000LUX
Seismic resistance	Capable of withstanding multiple impacts of falling from a height of 1.5 meters to the cement floor (allowable deviation of 5 °)

▶ Product Dimensional Drawing:
