▶ Product features:
Flexible installation to adapt to different application scenarios;
The reading width can cover 30-200mm;
High brightness LED design, capable of handling complex application scenarios;
Equipped with cables and RJ45 network ports, no external cables are required;
Supports multiple communication methods
Addressing Code Reading Challenges in Multiple Industries
Support multi parameter reading, which can better cope with mixed line production.
▶ Performance parameters:
| parameter | ICW64E | |
| Size (mm) | forty-eight × forty-five × 20 (Width × Height × Depth | |
| weight | 223g | |
| Power supply method | 12-30VDC | |
| power dissipation | Peak<2.5W. average 2W | |
| functional module | Dome llumination | |
| system architecture | Linux | |
| Image Data Format |
JPEG/BMP | |
| Sensor type | Global Shutter CMOS | |
| software | Read challenging one-dimensional/two-dimensional/DPM codes | |
| Reading distance | 30mm, 70mm, 100mm, 150mm | |
| resolving power | 1280 * 800 | |
| Frame rate | 60fps | |
| Image Color | Mono | |
| Auxiliary light source |
8 high brightness LED, capable of supporting red and white light sources |
|
| angle | FOV-h: 40degree FOV-v: 35degree |
|
| Interface type |
RS232. Top/IP. UDP. Modbup TCP Profinet, Ethernet/IP |
|
| Motion tolerance |
2m/s |
|
| Recognition accuracy |
1D (C128) 3mil, 2D (Datamatrix) 5mil; 1 mil-0.0254mm |
|
| Reading code system | 1D code: Code 128. Code 39, Code 93, Code 11, Matix 2 of 5, Interleaved 2 of 5 Codabar, MSI Plessey. GS1 DataBar, China Postal, UPC. EAN et al |
|
| temperature |
Operating: 0 ° C to 50 * C, Storage: -40 * C to 70 * C |
|
| humidity | 0% to 90% relative humility no condensing | |
| IP level |
IP54 | |

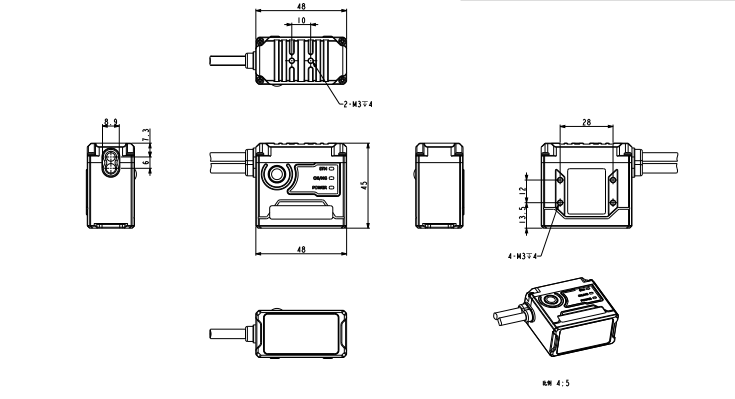

▶ Product Dimensional Drawing:
