ICW75

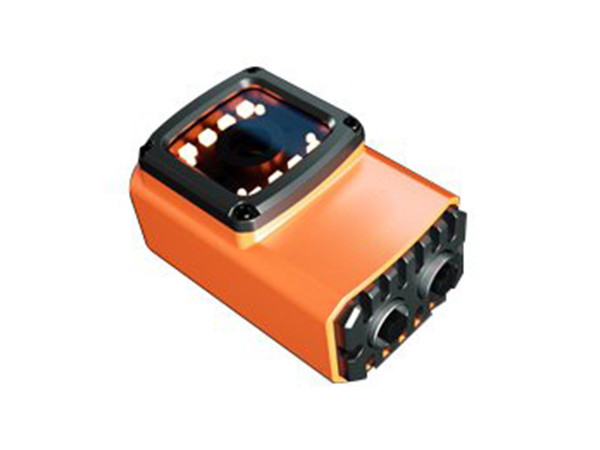

The ICW75 series image fixed code reader adopts a modular design and is compatible with M-port and C-port lenses, adapting to various complex application scenarios. This series of code readers has a wide range of light source options, which can support dome light and annular light to cope with the optical characteristics of different workpieces. The DPM decoding algorithm can stably read DPM QR codes, such as collision code, laser engraving code, rectangular code, etc. It is widely used in various industries such as 3C, automotive, lithium battery, LCD, etc.

Product details

▶ Product features:


1 million pixel image fixed code reader;

●DPM decoding algorithm, which can stably and quickly read various difficult DPM codes;

● Rich selection of light sources, capable of supporting dome light and annular light to cope with different optical characteristics of workpieces;

●Multiple status indicator lights, allowing for intuitive viewing of device status and successful code reading;

● Rich IO interfaces to meet customer signal input and output needs;

Support multiple communication protocols such as Ethernet, RS-232, RS-485, Modbus, USB-HID, etc;

● Support FTP image transmission for easy traceability and analysis;

Multiple sets of different code reading configuration parameters can be set to solve mixed line production applications;

● Support dynamic code reading;

All metal shell, with a protection level of IP65


▶ Performance parameters:



model ICW75L
Size (mm) eighty × fifty × 45 (Width × Height × Depth
weight 205.7g
Power supply method 5-30VDC ± 10%, 500mA
functional module Dome illumination
system architecture Linux
Sensor type Global Shutter CMOS
Frame rate 60FPS
pixel 1280 pixels (H) × 800 pixels (V)
Reading distance 30mm, 70mm, 100mm, 150mm
power dissipation Peak<5W, Average 3W
Interface support RS-232, RS-485, USB virtual COM, USB keyboard, Ethernet, Modbus
External input Two photoelectric isolation inputs, capable of connecting to NPN, PNP, and relays
External output Three photoelectric isolation outputs
Supports one-dimensional barcode 1-D Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Post, UPC, EAN, etc
Supports 2D barcode 2D PDF 417, MicroPDF 417, DataMatrix, Maxicode, QR code, MicroQR, Aztec, Hanxin, Vericode, etc
working temperature 0 ℃ to 50 ℃
Storage temperature -40 ℃ to 70 ℃
humidity 0% to 90% relative humidity (non condensing)
Recognition accuracy Min. 2mil
Safety level Light safety: EAN62471:2008
EMC electromagnetic interference EMC Electromagnetic compatibility: EN55032
Protection level IP65
ESD electrostatic protection level EN55024, contact discharge: 8kV, coupling discharge: 15kV
RF anti-interference IEC61000-4-3, 10V/m
Artificial light immunity 100000LUX
Seismic resistance Capable of withstanding multiple impacts of falling from a height of 1.5 meters to the cement floor (allowable deviation of 5 °)

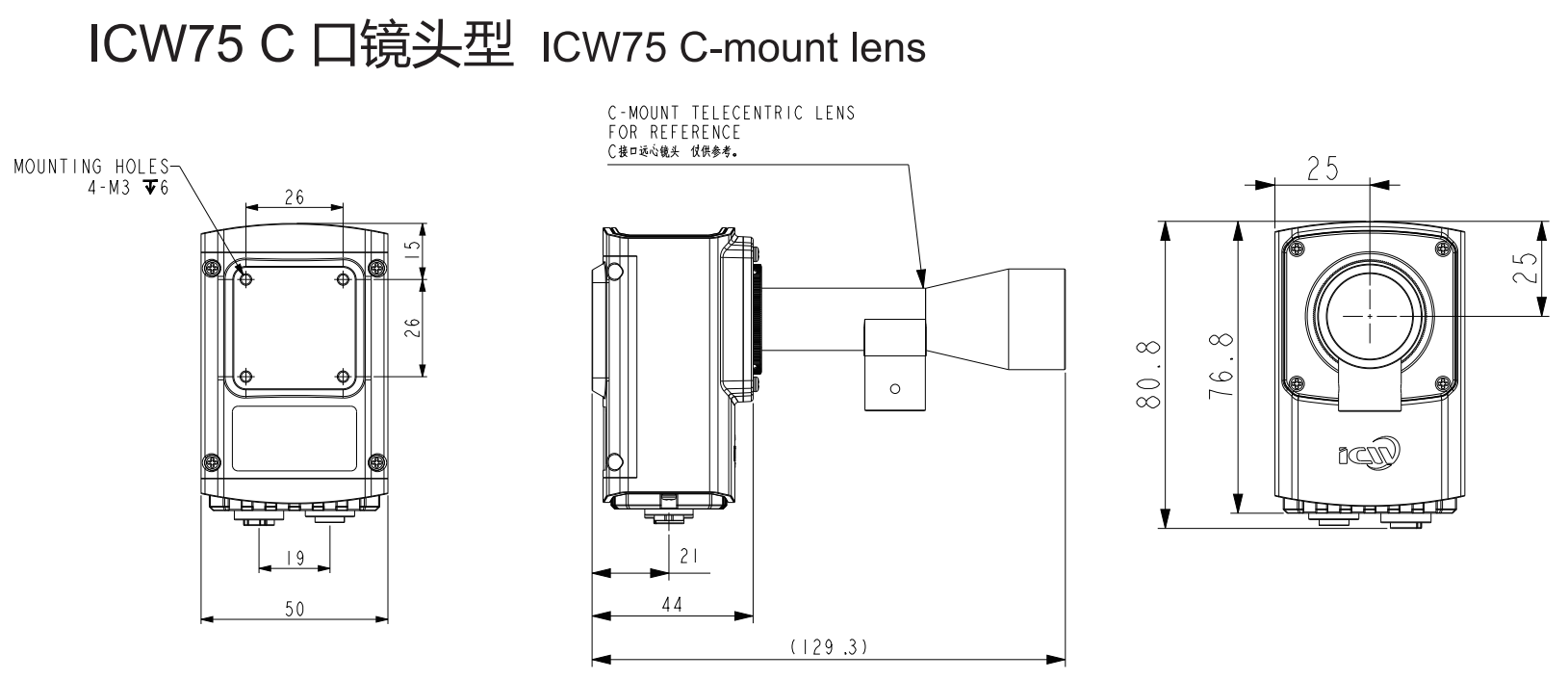

  ▶ Product Dimensional Drawing:
